525 Motorcycle Chain: Size, Strength, Master Link & Kit Guide

2025-10-30Blogs 460

Introduction

If you’re wondering what a 525 chain is, how it differs from a 520 chain, or whether you should upgrade your motorcycle to a 525 chain and sprocket kit, you’ve come to the right place. This guide explains everything you need to know about 520 vs 525 chain dimensions, strength, durability, and performance, so you can make the best choice for your riding style and bike type. Whether you’re tuning your 525 motorcycle chain, replacing a 525 chain master link, or comparing 525 vs 520 chain options for street or track use, this article gives you the clear, practical answers you need before buying or upgrading.

What is 525 Chain?

525 chain This number precisely defines the physical dimensions of the chain. The first digit “5” refers to the “pitch” of the chain, that is, the distance between the center of the chain pins. Specifically, “5” means 5/8 inch, which translates to 15.875mm. This pitch is the key to determining the length of the chain and the matching of the toothed disc. The next two digits “25” relate to the “inner plate width” of the chain, I .e. the distance between the inner link plates. Here, “25” means 2.5/80 inches, or more intuitively, 7.94 millimeters. So, when you see 525 chain, it shows that this is a chain with a pitch of 5/8 inches and an inner width of 7.94mm. This is a very specific size, which directly affects the engagement of the chain and the toothed disc, as well as the overall transmission efficiency.

The penetration rate of 525 chain is very high. From street cars to sports cars, from hundreds of cc entry-level models to upgraded beasts, you can see it. Some middleweight sports street cars, such as Honda CB650R, Kawasaki Z900, and even some models of BMW F series, are very fond of 525 motorcycle chain. Not to mention that many upgraded sports motorcycles, such as Yamaha R1 and Suzuki GSX-R1000, often use this specification. In my opinion, the reason why it is so popular is that it finds an excellent balance between strength, weight and transmission efficiency. It is not as heavy as the thicker 530 chain, which increases the unsprung mass and affects the handling. It also provides more reliable strength than the 520 chain and can withstand the torque output of a larger displacement engine. It can meet the power transmission needs of almost most medium-displacement motorcycles, which is why it is so common in the market.

It is no accident that the 525 motorcycle chain has become standard in many models. If the engine output of the 1 trolley reaches a certain level, but does not need to be extremely high to the track level, then 525 chain is often the “dessert”. Its design can control the weight of the chain itself as much as possible under the premise of ensuring sufficient strength, thereby reducing the unsprung mass, making the acceleration response of the vehicle more sensitive and the control more precise. Moreover, the manufacturing process of 525 chain is relatively mature and cost-effective, which is a very practical advantage for mass-produced motorcycles. Therefore, when I maintain various motorcycles in the workshop, or modify and upgrade them, I usually smile when I see the original configuration 525 chain, because I know that this is a safe and efficient choice made by engineers after careful consideration.

520 vs 525 chain

520 chain vs 525: strength, weight and durability

In my opinion, the core difference between 520 chain and 525 chain lies in their “skeleton”-that is, the width of the chain link and the diameter of the pin shaft. Intuitively, the 525 chain is stronger than the 520 chain. This structural difference directly determines their performance in strength, weight and durability.

Strength.the tensile strength of 525 chain is usually higher than that of 520 chain. This means that it can withstand greater instantaneous impact and continuous torque output, and is less prone to fracture or deformation. For those high-powered motorcycles, such as public upgraded sports cars or heavy cruising vehicles, the extra strength provided by the 525 chain is a solid guarantee.

Weight. Due to the increase in material usage, the 525 chain will naturally be heavier than the 520 chain. Don’t underestimate this weight. On a track that pursues extreme performance, every 1 grams may affect acceleration and handling. Therefore, lightweight is a major advantage of 520 chain, especially for small displacement or track exclusive models, it can bring more sensitive response.

Durability. Due to its stronger structure and larger contact area, 525 chain tends to have a longer service life and better resistance to wear. This means that under the same conditions of use, the 525 chain is less prone to stretching and the maintenance period is relatively longer. Of course, this is only a general rule, and the actual durability is closely related to the chain brand, manufacturing process and daily maintenance.

520 chain vs 525 chain:How To Choose?

Choosing 520 chain vs 525 chain is actually a trade-off based on your car needs and habits.

If your car is a publicly upgraded sports car with hundreds of horsepower at every turn, and you often “drive violently”, then there is no doubt that I will definitely recommend you to use 525 chain. It can better withstand the huge impact of high power output and reduce the risk of chain breakage.

But if you are the kind of driver who focuses on track competition and pursues the ultimate lap speed and handling experience, then 520 chain may be more suitable for you. In order to reduce weight, many track-specific models will specially change the original 525 chain to 520 chain. Although a little strength is sacrificed, the reduced unsprung mass can bring faster acceleration, more sensitive steering, and less gyro effect. Of course, racing cars with 520 chains usually require more frequent inspections and replacements.

For some medium-displacement street cars or rally cars, the original factory may be equipped with 520 chain. If you just commute daily and run the mountains occasionally, that 520 chain is more than enough. But if you like to travel with heavy loads, often double-load or carry a lot of luggage, then upgrading to 525 chain is also a good choice, it can bring you a more comfortable riding experience.

In short, my suggestion is to look at the original chain model of your car first. If your riding strength far exceeds the original factory setting, or if you want to improve some aspect of performance, consider whether to replace it. Blind upgrade or downgrade may bring unnecessary trouble.

520 vs 525 chain dimensions:What’s The Difference?

In terms of technical parameters, the 520 vs 525 chain dimensions is mainly reflected in the width of the inner chain link and the diameter of the pin shaft. The “5” here represents the pitch, that is, the distance between the centers of the two pins on the chain, which is 5/8 inch, which is the same. The “20” and “25” represent the width of the chain, specifically, the width of the inner chain link. The inner link width of the 520 chain is about 6.35mm (1/4 inch), while the inner link width of the 525 chain is about 7.94mm (5/16 inch). At the same time, the pin diameter of the 525 chain is usually larger than that of the 520 chain.

These dimensional differences directly affect their performance:

• Larger contact area: The wider inner link of the 525 chain means that it has a larger contact area with the sprocket teeth. This can distribute stress more evenly, reduce gear wear, and improve power transmission efficiency.
• Higher shear resistance: a larger pin diameter means that the pin is stronger, can withstand greater shear force, and is not easy to be broken.
• Compatibility issues: Due to the different dimensions of the 520 vs 525 chain, the sprockets they match are also different. If you want to upgrade from 520 chain to 525 chain, or vice versa, you usually need to replace the front and rear sprockets at the same time, otherwise the size mismatch will cause serious wear and even safety hazards. I have seen many car friends only change the chain instead of the sprocket, resulting in various problems before long. Compatibility is first.
• Chain guidance and clearance: The vehicle design takes into account the width and swing clearance of the chain. If the blind replacement of the size of the chain does not match, it may cause the chain and the frame or other parts of the scratch, or even stuck.

When choosing a chain, I usually consider the following points:

• Original factory setting: first refer to the original chain model and sprocket tooth number of the vehicle, which is the most basic starting point.
• Vehicle use: Is the customer daily commuting, long-distance motorcycle travel, race track competition or heavy off-road? Different uses have different requirements for the strength and durability of the chain.
• Ride style: Is the customer a Buddha rider or an aggressive driver? Driving habits will directly affect the wear rate of the chain.
• Budget: The prices of chains of different brands and materials vary greatly. I will choose products with high cost performance on the premise of meeting performance requirements.
• Compatibility: Any chain replacement must ensure full compatibility with the front and rear sprockets.

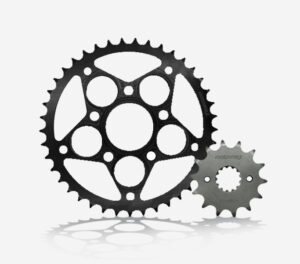

525 Chain And Sprocket Kit: Selection and Installation

When do you need to replace the chain? When you find that the chain is seriously slack, adjusted to the limit can not return to normal tension, or chain links are stiff, uneven wear, or even abnormal noise, it is time to consider the new 525 chain and sprocket kit. Don’t think that the chain can be used. Inferior or aging chains not only affect the efficiency of power transmission, but are more likely to break during high-speed driving. Therefore, it is very important to choose a high-quality 525 chain and sprocket kit, which can ensure your riding safety and provide smooth power output.

So, in the face of the dazzling array of products on the market, how to choose? First of all, the material is the key. High-performance chains are usually made of alloy steel and have undergone special heat treatment to improve their strength and wear resistance. As for the matching of teeth, it depends on your riding habits and vehicle type. If you prefer acceleration, you can consider a slightly smaller number of teeth on the rear chain plate.

If you pay more attention to speed performance, you can try a larger rear chain plate. However, this is not absolute, sometimes the original number of teeth is the most balanced choice. My suggestion is to first understand the original configuration of your motorcycle, and then fine-tune it according to your own needs. Of course, if you are really unsure, feel free to comment below and I can help you find the most suitable 525 chain and sprocket kit.

Finally, I would like to emphasize that replacing 525 chain and sprocket kit is not the 1 thing that can be done by oneself. I know many motorcycle friends like to do it themselves, but the transmission system is a delicate job, involving professional tools and precise torque requirements. Especially the installation of 525 chain master link and 525 motorcycle chain master link, if the operation is improper, the chain may not be installed firmly or even fall off during driving.

Although I will briefly mention the steps and considerations, I strongly recommend that you leave the work to a professional technician. We have the tools and experience to make sure your 525 chain and sprocket kit is in place for you to ride with peace of mind.

Routine maintenance of 525 chain

A properly maintained 525 chain is essential to ride safety and performance. Don’t underestimate the daily cleaning and lubrication, which is the key to extending the life of your 525 chain. Many riders find it troublesome, but believe me, this time is definitely worth the money. The clean and lubricated 525 chain not only has high transmission efficiency, but also rides smoother. Most importantly, it can effectively avoid early wear and performance degradation.

When it comes to checking the chain 525, this job requires care. The first is tightness, which is the most basic. In the middle position of the rocker arm, the up and down free stroke of the chain 525 should be about 2-3cm. Too tight will increase the transmission system load, too loose is easy to off the chain. Find a few different points to test the tightness, because uneven wear is common. Then there is to check the wear. You can measure the length of 10 links with a ruler. If it exceeds the standard value, it means that your 525 motorcycle chain has been overstretched. A more intuitive method is to observe whether there is an obvious gap between the links and whether the tooth profile of the toothed disc becomes sharp. These are signals that need to be replaced.

Rust is the biggest problem faced by 525 chain, especially after riding in a humid environment, it is very easy to rust if it is not cleaned and lubricated in time. Once rusted, it will not only affect the appearance, but also accelerate wear. As for the risk of breakage, this is usually caused by a long-term lack of maintenance, excessive wear or improper impact. Prevention is actually very simple, that is, repeated emphasis on “regular inspection”. Before each ride, take a few minutes to check the condition of your 525 motorcycle chain and listen for any abnormal noises. Once the problem is found, deal with it in time. Only in this way can you ensure that your 525 motorcycle chain is always in the best condition, so that you can enjoy the ride with peace of mind.

525 Chain Frequently Asked Questions

Question 1: Does my motorcycle have to use 525 chain?

This is definitely one of the questions I get asked most often. The answer is: not necessarily, but usually, you should follow the recommendations of the original factory. At the beginning of the design of each motorcycle, engineers have gone through rigorous calculations, including the power output of the engine, the weight of the vehicle, and the expected usage scenarios, to select the most suitable chain specifications.

If your original factory is equipped with 525 chain, then my suggestion is to continue to use 525 chain. The use of chains of other sizes may lead to a decrease in transmission efficiency and even affect the life of the chain and chain plate. Of course, there are also some modification enthusiasts who will change the 525 chain to a lighter 520 chain in order to reduce weight or specific performance requirements. But this usually only applies to track cars or professionally tuned vehicles, and it also requires the replacement of matching sprocket kits at the same time. For daily riding, honestly according to the original specifications, is definitely the most worry-free and safest way.

Question 2: Which is more durable, 520 vs 525 chain?

Regarding the durability of the 520 vs 525 chain, this really has to be seen in combination with your riding habits and the power output of the motorcycle.

In theory, the 525 chain will be structurally stronger than the 520 chain due to its wider plates and thicker pins, which are usually able to withstand greater tensile forces and torques, and may also have a longer theoretical life. If you are riding a large-displacement, high-power motorcycle, or your riding style is more aggressive, often violent acceleration and deceleration, then the extra strength of the 525 chain will give you better durability and reduce the premature chain. Risk of wear.

However, for low-and medium-displacement motorcycles, or your riding style is more Buddhist, then a high-quality 520 chain can also provide excellent durability. Moreover, the 520 chain is lighter, which can reduce the unsprung mass of the transmission system, and theoretically improve the acceleration response and handling of the vehicle a little bit.

Instead of worrying about which is more durable, 520 vs 525 chain should pay more attention to the brand and material of the chain and your daily cleaning and lubrication habits. A properly maintained chain, regardless of size, will live longer than a chain neglected to maintain.

Question 3: How can I tell if my chain is a 525 chain?

Identifying the size of the chain is actually very simple, you need a vernier caliper or tape measure. The “5” in the 525 chain means that the pitch of the chain is 5/8 inch (about 15.875mm), while the following “25” means that the width of the chain is 2.5/80 inch (about 7.94mm).

The most direct way is:

• Measure the inner width of the chain: Use a caliper to measure the distance between the two inner link plates on the inner side of the chain. If it is a 525 chain, this width should be close to 7.94mm.
• Check the chain lettering: many chains will have a model number engraved on the outer chain plate, such as “DID 525VX” or “RK 525GXW. This is the most accurate identification method.
• Control the vehicle manual: the safest way is to read your motorcycle user manual, which will clearly indicate the specifications of the original chain.

Question 4: What should I pay attention to when replacing the 525 chain master link?

The replacement of 525 chain master links, especially the rivet type master link, requires special emphasis on security. Master link is the only link on the chain that can be disassembled, and its installation quality is directly related to the reliability of the entire chain.

If you are using the master link of clip type, make sure that the opening direction of the circlip is correct during installation, usually the opening is opposite to the forward direction of the chain, and it is completely stuck into the slot.

If it is a pressure riveting master link, it must use a special chain tool for pressure riveting. The pressure riveting force should be moderate, not only to ensure that the pin is riveted to death, but also not to over-crush the O-ring or X-ring. Too loose will cause the master link to fall off, and too tight will cause the chain link to move poorly and accelerate wear.

If you do not have professional chain tools and experience, it is best to replace the master link to a professional motorcycle technician. After all, if the chain breaks at high speed, the consequences will be disastrous.

Question 5: What are your suggestions when purchasing 525 chain and sprocket kit?

When purchasing the 525 chain and sprocket kit, I strongly recommend that you pay attention to the following points:

• Brand and quality: Don’t be cheap. Chain and chain disc are the most critical components in the transmission system, which are directly related to driving safety and vehicle performance. Choose 525 chain and sprocket kit from well-known brands such as DID, RK and AFAM. Their materials and manufacturing processes are guaranteed.
• Matching purchase: I always emphasize that the chain and chain plate are best replaced together. The old chain disc and the new chain are not running well, which will accelerate the wear of the new chain. And vice versa.Purchasing complete set of 525 chain and sprocket kit ensures the best fit between the components.
• Number of teeth selection: according to your riding needs and habits, you can consider adjusting the number of teeth of the chain plate. For example, if you want to improve the acceleration performance, you can appropriately reduce the number of front chain plate teeth or increase the number of rear chain plate teeth; if you want to get better high-speed cruise performance, you can operate in reverse. However, it is important to remember that a substantial change in the number of teeth will affect the instrument display and the transmission ratio set by the original factory, which requires careful consideration.
• Material and coating: Pay attention to the material of the chain disc. The steel chain disc has good durability but is heavier; the aluminum alloy chain disc is lightweight, but the durability is slightly worse. Some high-end chains will use special O-ring, X-ring or Z-ring designs to better maintain lubrication and extend life.
• Anti-counterfeiting and quality assurance: Pay attention to the anti-counterfeiting identification and quality assurance information of the product when purchasing to ensure that what you buy is genuine.

Conclusion

In summary, understanding the difference between 520 vs 525 chain is key to improving your motorcycle’s performance, reliability, and safety. The 525 chain offers a perfect balance between strength and weight, making it ideal for medium to large-displacement motorcycles, while the 520 chain focuses on lightweight agility for racing and track use. When replacing or upgrading, always choose a quality 525 motorcycle chain master link and a matched 525 chain and sprocket kit for the best fit and longevity. Whether you stay with your stock setup or switch to a new chain size, maintaining your chain 525 properly ensures smooth power delivery and long-lasting performance on every ride.
